PETG Transparent Solid Sheet – UV
Properties
PETG / PolyEther Terephtalate Glycol
Unique features
Fabrication Options
- Drilling
- Sawing/milling
- Heat bending
- Adhesive bonding
- Thermoforming
- Screen printing
- Digital printing
- Cutting/die-cutting
- Vinyl application
- Offset printing
- Laser cutting/engraving
PETG Transparent Solid Sheet – UV

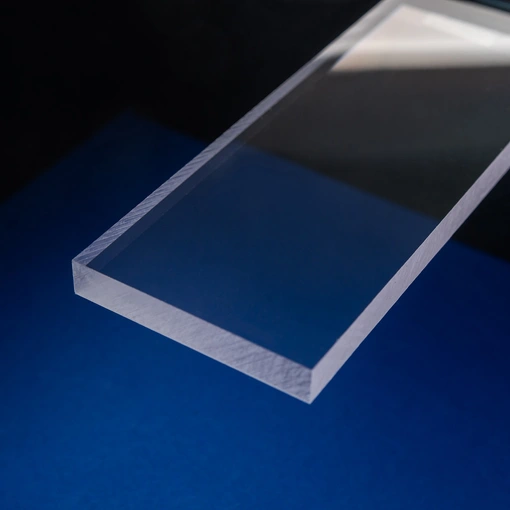

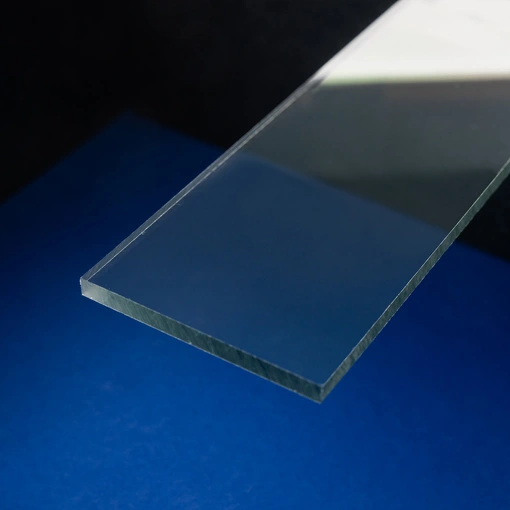

SRT Plastics PETG Transparent Solid Sheet – UV
SRT Plastics PETG Transparent Solid Sheet – UV is a versatile thermoplastic material known for its exceptional clarity, impact resistance, and UV protection. This material is ideal for applications requiring high transparency and durability in outdoor environments, such as signage, displays, and protective barriers.
Manufactured to the highest standards, our UV-stabilized PETG sheets offer excellent chemical resistance and are suitable for both indoor and outdoor use. The material's ease of thermoforming and fabrication makes it a preferred choice for designers and manufacturers seeking both aesthetic appeal and functional performance.
Key Applications
- Outdoor signage and graphic panels
- Retail and point-of-sale displays
- Protective barriers and shields
- Machine guards and safety enclosures
- Lighting fixtures and diffusers
- Thermoformed components
Product Features
- UV Resistance: Co-extruded UV layer protects against yellowing and degradation from sunlight.
- High Clarity: Excellent transparency for clear visibility.
- Impact Resistance: Superior toughness compared to acrylic.
- Ease of Fabrication: Can be easily cut, drilled, and thermoformed.
- Chemical Resistance: Resistant to a wide range of chemicals and cleaning agents.
- Thermoformable: Suitable for deep draws and complex shapes without pre-drying.
- Food Contact Approved: Compliant with FDA regulations for food contact applications.
Processing & Fabrication Options
SRT Plastics PETG sheets can be processed using standard fabrication techniques:
- Cutting: Sawing and CNC routing
- Drilling: For mounting and assembly
- Bending: Cold and heat bending for various shapes
- Joining: Adhesive bonding and mechanical fastening
- Printing: Compatible with screen and digital printing
- Thermoforming: Ideal for vacuum forming and pressure forming
Availability & Customization
SRT Plastics offers PETG sheets in various thicknesses and sizes to meet diverse application needs. Custom dimensions and thicknesses are available upon request. Please refer to our Stock and Production sections for detailed information or contact us directly for specific requirements.
Er is geen voorraad beschikbaar
Plastic Classification Certificates and Test Standards
This information is available for download in the following tab.
| Category | Classification | Thickness | Product | Test & Standard |
| Building - European (Fire-smoke-droplets) | Bs1d0 | 0,75-6 mm | Polycarbonate - All (Clear, Transparent and Translucent Colours) | EN 13501-1 |
| Building - European (Fire-smoke-droplets) | Bs2d0 | 0,75-6 mm | PETG - All (Clear Transparent and Translucent Colours) | EN 13501-1 |
| Building - European (Fire-smoke-droplets) | Bs1d0 | All | Polycarbonate Multiwall | EN 13501-1 |
| Building - European (Fire-smoke-droplets) | Bs1d0 | 2-6 mm | Polycarbonate Hard Coated Clear | EN 13501-1 |
| Building - European (Fire-smoke-droplets) | E | 6-20 mm | Polycarbonate All Clear and Translucent | EN 13501-1 |
| Building - European (impact safety) | P5A | 4 mm | Polycarbonate All Solid | EN 356 - Ball |
| Building - European (impact safety) | P8B | 15 mm | Polycarbonate Sheet Standard Clear Transparent UVP | EN 356 - Axe |
| Building - European (impact safety) | P6B | 8 mm | Polycarbonate Sheet Standard Clear Transparent UVP | EN 356 - Axe |
| Building - European (impact safety) | P6B | 12 mm | Polycarbonate Sheet Standard Clear Transparent UVP | EN 356 - Axe |
| Building - UK (Fire) | 1Y | 3 mm | Polycarbonate Sheet Standard Clear Transparent UVP | BS 476 part 7 |
| Building - UK (Fire) | 1Y | 4 mm | Polycarbonate Sheet Standard Clear Transparent UVP | BS 476 part 7 |
| Building - European (Suitability for use in Dome lights) | ΔA | 3-6 mm | Polycarbonate Sheet Standard Clear Transparent UVP | EN 1873 |
| Building - European (Suitability for use in Dome lights) | Cu0, Ku1 | 3 mm | Polycarbonate Sheet Standard Clear Transparent UVP | EN 1873 |
| Building - European (Suitability for use in Dome lights) | Cu0, Ku1 | 6 mm | Polycarbonate Sheet Standard Clear Transparent UVP | EN 1873 |
| Electrical - Glow wire testing | 960°C | 2 mm | Polycarbonate Opaque Black | Glowwire IEC 60695-2-12 |
| Electrical - Glow wire testing | 850°C | 2 mm | Polycarbonate Sheet Standard Clear Transparent UVP | Glowwire IEC 60695-2-12 |
| Electrical - Glow wire testing | 850°C | 3 mm | Polycarbonate Sheet Standard Clear Transparent UVP | Glowwire IEC 60695-2-12 |
| Electrical - Glow wire testing | 960°C | 5mm | Polycarbonate Sheet Standard Clear Transparent UVP | Glowwire IEC 60695-2-12 |
| Soundwalls - European | Rw 35(-2;-2) dB | 15 mm | Polycarbonate Sheet Standard Clear Transparent UVP | ISO 717-1 |
| Soundwalls - European | Class 6 Impact | 12 mm | Polycarbonate Sheet Standard Clear Transparent UVP | EN 1794-2 |
| Soundwalls - European | Class 2 Fire | 8 mm | Polycarbonate Sheet Standard Clear Transparent UVP | EN 1794-2 |
| Soundwalls - European | Rw = 36 dB | 17 mm | Polycarbonate Sheet Standard Clear Transparent UVP | ISO 717-1 |
| Soundwalls - European | 36 dB Class B3 | 18 mm | Polycarbonate Sheet Standard Clear Transparent UVP | EN 1793-2 |
| Soundwalls - European | 37 dB Class B3 | 20 mm | Polycarbonate Sheet Standard Clear Transparent UVP | EN 1793-2 |
| Soundwalls - European | 33 dB Class B3 | 15 mm | Polycarbonate Sheet Standard Clear Transparent UVP | EN 1793-2 |
| UL94 - Indicative Only | V0 | 10 mm | Polycarbonate Sheet Standard Clear Transparent | UL94 |
| Welding Screens | Pass | 3 & 4 mm | Polycarbonate Coloured FI-01 | ISO 25980 |
| Aircraft - (Fire) | b2 | 1,5-12 mm | Polycarbonate Sheet Standard Clear Transparent UVP | FAR 25.853(a) |
| Safety Glazing in Automotive - Homologation | Homologation | 1.8-12 mm | Polycarbonate Hard Coated - All Colours | ECE R43 |
| Fire Properties in Bus Interior - Annex 6-7-8 | Homologation | 2-20 mm | Polycarbonate Hard Coated - Clear & Grey | ECE R118 |
| Fire Properties in Bus Interior - Annex 6-7-8 | Homologation | > 1.5 mm | PC/ABS 5103.03 R118-7-8 | ECE R118 |
| Oxygen index | 38,2 | 3 mm | Polycarbonate Opaque 7000 (FR) Flame Retardent | ISO 4589-2 |
| Oxygen index | 36,2 | 3 mm | Polycarbonate Sheet (FR) Flame Retardent Clear | ISO 4589-2 |
| Oxygen index | 27,3 | 3 mm | Polycarbonate Sheet Clear | ISO 4589-2 |
| Oxygen index | 27,2 | 3 mm | Polycarbonate Sheet Opaque Black | ISO 4589-2 |
| Food Contact | Approved for Professional Applications | All | Polycarbonate Sheet (FA) Food Approved | EU 10-2011 |
| Food Contact | Approved for Professional Applications | All | Polycarbonate Sheet Clear | EU 10-2011 |
Er zijn geen certificaten beschikbaar
