Multiwall Polycarbonate Sheet | X-Structure 6-Wall

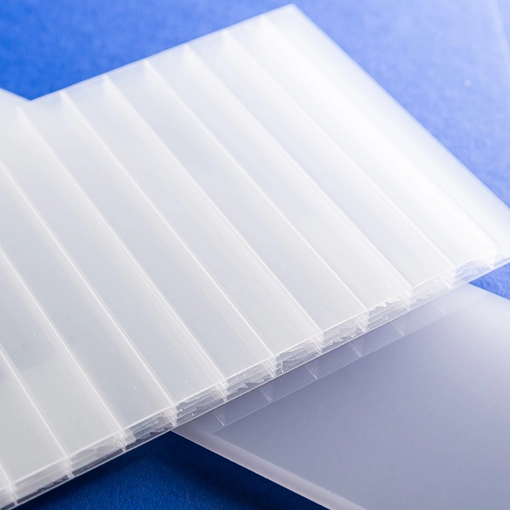

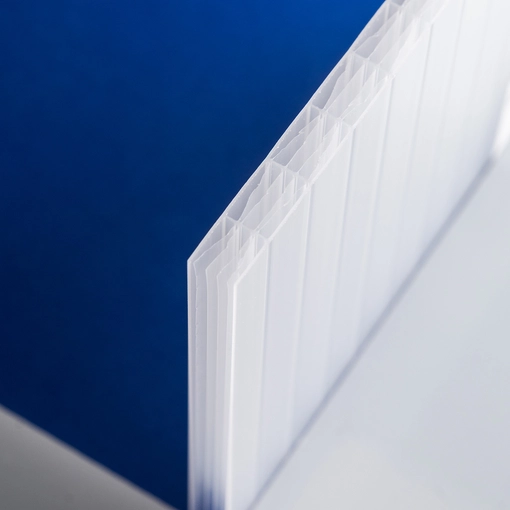

SRT Plastics PC – Multiwall Polycarbonate Sheet, X-Structure 6-Wall
SRT Plastics PC – Multiwall Polycarbonate Sheet, X-Structure 6-Wall is engineered for applications demanding superior thermal insulation and structural strength. The 6-wall X-structure enhances rigidity while maintaining a lightweight profile, making it ideal for various architectural and industrial uses.
This sheet features a co-extruded UV-protective layer, ensuring long-term durability and resistance to weathering. Its high light transmission and thermal insulation properties make it an excellent choice for energy-efficient building solutions.
Key Applications
- Roofing and skylights
- Wall cladding and façades
- Greenhouses and conservatories
- Covered walkways and canopies
- Interior partitions and displays
Product Features

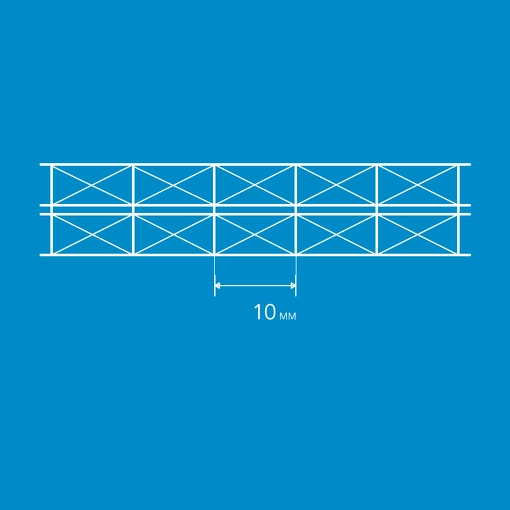

- Superior Insulation: The six-wall X-structure offers enhanced thermal insulation compared to traditional multiwall sheets.
- UV Protection: Co-extruded UV layer protects against yellowing and degradation.
- High Impact Resistance: Durable material withstands physical impacts, reducing maintenance needs.
- Lightweight Design: Easier handling and installation compared to traditional glazing materials.
- Excellent Light Transmission: Allows natural light while diffusing glare for comfortable illumination.
Processing & Fabrication Options
- SRT Plastics PC – Multiwall Polycarbonate Sheet can be processed using standard fabrication techniques:
- Cutting: Sawing and CNC milling
- Drilling: For fixture installation
- Bending: Cold bending for curved applications
- Joining: Using appropriate adhesives or mechanical fasteners
- Printing: Suitable for screen and digital printing
Availability & Customization
SRT Plastics offers flexible order quantities with options for custom dimensions and thicknesses. Please refer to our Stock and Production sections for detailed information or contact us directly for specific requirements.
Er is geen voorraad beschikbaar
Plastic Classification Certificates and Test Standards
This information is available for download in the following tab.
| Category | Classification | Thickness | Product | Test & Standard |
| Building - European (Fire-smoke-droplets) | Bs1d0 | 0,75-6 mm | Polycarbonate - All (Clear, Transparent and Translucent Colours) | EN 13501-1 |
| Building - European (Fire-smoke-droplets) | Bs2d0 | 0,75-6 mm | PETG - All (Clear Transparent and Translucent Colours) | EN 13501-1 |
| Building - European (Fire-smoke-droplets) | Bs1d0 | All | Polycarbonate Multiwall | EN 13501-1 |
| Building - European (Fire-smoke-droplets) | Bs1d0 | 2-6 mm | Polycarbonate Hard Coated Clear | EN 13501-1 |
| Building - European (Fire-smoke-droplets) | E | 6-20 mm | Polycarbonate All Clear and Translucent | EN 13501-1 |
| Building - European (impact safety) | P5A | 4 mm | Polycarbonate All Solid | EN 356 - Ball |
| Building - European (impact safety) | P8B | 15 mm | Polycarbonate Sheet Standard Clear Transparent UVP | EN 356 - Axe |
| Building - European (impact safety) | P6B | 8 mm | Polycarbonate Sheet Standard Clear Transparent UVP | EN 356 - Axe |
| Building - European (impact safety) | P6B | 12 mm | Polycarbonate Sheet Standard Clear Transparent UVP | EN 356 - Axe |
| Building - UK (Fire) | 1Y | 3 mm | Polycarbonate Sheet Standard Clear Transparent UVP | BS 476 part 7 |
| Building - UK (Fire) | 1Y | 4 mm | Polycarbonate Sheet Standard Clear Transparent UVP | BS 476 part 7 |
| Building - European (Suitability for use in Dome lights) | ΔA | 3-6 mm | Polycarbonate Sheet Standard Clear Transparent UVP | EN 1873 |
| Building - European (Suitability for use in Dome lights) | Cu0, Ku1 | 3 mm | Polycarbonate Sheet Standard Clear Transparent UVP | EN 1873 |
| Building - European (Suitability for use in Dome lights) | Cu0, Ku1 | 6 mm | Polycarbonate Sheet Standard Clear Transparent UVP | EN 1873 |
| Electrical - Glow wire testing | 960°C | 2 mm | Polycarbonate Opaque Black | Glowwire IEC 60695-2-12 |
| Electrical - Glow wire testing | 850°C | 2 mm | Polycarbonate Sheet Standard Clear Transparent UVP | Glowwire IEC 60695-2-12 |
| Electrical - Glow wire testing | 850°C | 3 mm | Polycarbonate Sheet Standard Clear Transparent UVP | Glowwire IEC 60695-2-12 |
| Electrical - Glow wire testing | 960°C | 5mm | Polycarbonate Sheet Standard Clear Transparent UVP | Glowwire IEC 60695-2-12 |
| Soundwalls - European | Rw 35(-2;-2) dB | 15 mm | Polycarbonate Sheet Standard Clear Transparent UVP | ISO 717-1 |
| Soundwalls - European | Class 6 Impact | 12 mm | Polycarbonate Sheet Standard Clear Transparent UVP | EN 1794-2 |
| Soundwalls - European | Class 2 Fire | 8 mm | Polycarbonate Sheet Standard Clear Transparent UVP | EN 1794-2 |
| Soundwalls - European | Rw = 36 dB | 17 mm | Polycarbonate Sheet Standard Clear Transparent UVP | ISO 717-1 |
| Soundwalls - European | 36 dB Class B3 | 18 mm | Polycarbonate Sheet Standard Clear Transparent UVP | EN 1793-2 |
| Soundwalls - European | 37 dB Class B3 | 20 mm | Polycarbonate Sheet Standard Clear Transparent UVP | EN 1793-2 |
| Soundwalls - European | 33 dB Class B3 | 15 mm | Polycarbonate Sheet Standard Clear Transparent UVP | EN 1793-2 |
| UL94 - Indicative Only | V0 | 10 mm | Polycarbonate Sheet Standard Clear Transparent | UL94 |
| Welding Screens | Pass | 3 & 4 mm | Polycarbonate Coloured FI-01 | ISO 25980 |
| Aircraft - (Fire) | b2 | 1,5-12 mm | Polycarbonate Sheet Standard Clear Transparent UVP | FAR 25.853(a) |
| Safety Glazing in Automotive - Homologation | Homologation | 1.8-12 mm | Polycarbonate Hard Coated - All Colours | ECE R43 |
| Fire Properties in Bus Interior - Annex 6-7-8 | Homologation | 2-20 mm | Polycarbonate Hard Coated - Clear & Grey | ECE R118 |
| Fire Properties in Bus Interior - Annex 6-7-8 | Homologation | > 1.5 mm | PC/ABS 5103.03 R118-7-8 | ECE R118 |
| Oxygen index | 38,2 | 3 mm | Polycarbonate Opaque 7000 (FR) Flame Retardent | ISO 4589-2 |
| Oxygen index | 36,2 | 3 mm | Polycarbonate Sheet (FR) Flame Retardent Clear | ISO 4589-2 |
| Oxygen index | 27,3 | 3 mm | Polycarbonate Sheet Clear | ISO 4589-2 |
| Oxygen index | 27,2 | 3 mm | Polycarbonate Sheet Opaque Black | ISO 4589-2 |
| Food Contact | Approved for Professional Applications | All | Polycarbonate Sheet (FA) Food Approved | EU 10-2011 |
| Food Contact | Approved for Professional Applications | All | Polycarbonate Sheet Clear | EU 10-2011 |
Er zijn geen certificaten beschikbaar
