Multiwall Polycarbonate Sheet | X-Structure 5-Wall

SRT Plastics PC – Multiwall Polycarbonate Sheet, X-Structure 5-Wall

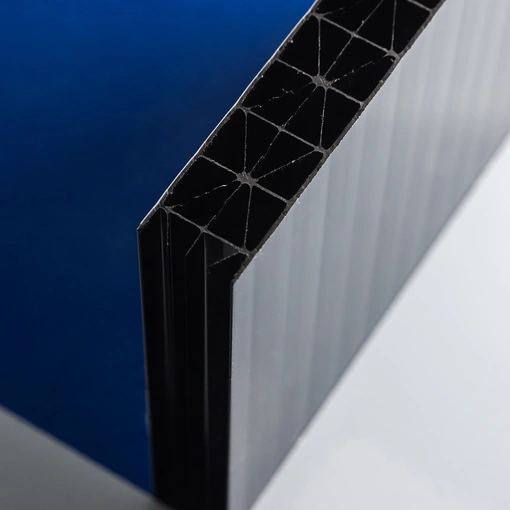

Introducing X-Structure 5 Wall Polycarbonate

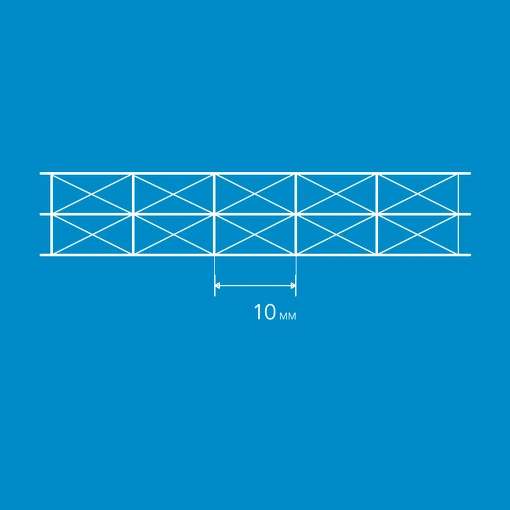

SRT Plastics PC – Multiwall Polycarbonate Sheet, X-Structure 5-Wall is engineered for applications demanding enhanced thermal insulation and structural rigidity. The 5-wall X-structure provides superior strength while maintaining a lightweight profile, making it ideal for various architectural and industrial uses.​

This sheet features a co-extruded UV-protective layer, ensuring long-term durability and resistance to weathering. Its high light transmission and thermal insulation properties make it an excellent choice for energy-efficient building solutions.

Available Finishes:

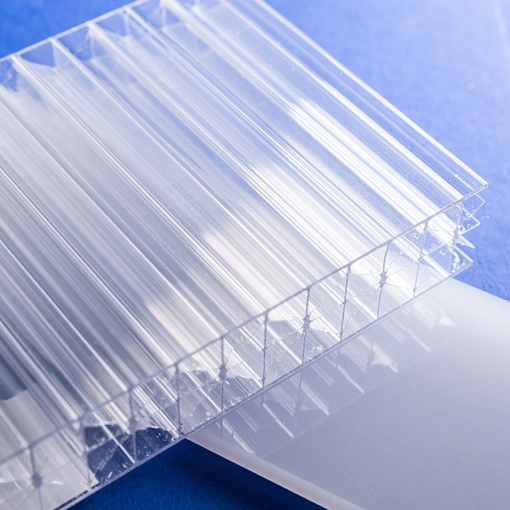

  • Clear
  • Opal (Milky White)
  • Transparent (Tinted)
  • Hammer Finish (Textured Surface)

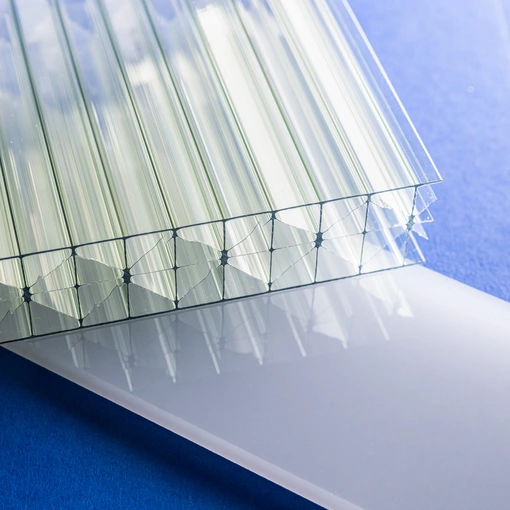

  • Solar Control (Heat-Reflective Coating)

Properties
PC / Polycarbonate

Unique features

  • Roofing and skylights
  • Wall cladding and façades
  • Greenhouses and conservatories
  • Covered walkways and canopies
  • Interior partitions and displays

Fabrication Options

  • Sawing/Milling
  • Drilling
  • Heat bending
  • Cold bending
  • Adhesive bonding
  • Thermoforming
  • Screen printing
  • Digital printing
  • Cutting
  • Lettering
  • Offset printing
  • Laser cutting

Multiwall Polycarbonate Sheet | X-Structure 5-Wall

Er is geen voorraad beschikbaar

Plastic Classification Certificates and Test Standards

This information is available for download in the following tab.

Category Classification Thickness Product Test & Standard
Building - European (Fire-smoke-droplets) Bs1d0 0,75-6 mm Polycarbonate - All (Clear, Transparent and Translucent Colours) EN 13501-1
Building - European (Fire-smoke-droplets) Bs2d0 0,75-6 mm PETG - All (Clear Transparent and Translucent Colours) EN 13501-1
Building - European (Fire-smoke-droplets) Bs1d0 All Polycarbonate Multiwall EN 13501-1
Building - European (Fire-smoke-droplets) Bs1d0 2-6 mm Polycarbonate Hard Coated Clear EN 13501-1
Building - European (Fire-smoke-droplets) E 6-20 mm Polycarbonate All Clear and Translucent EN 13501-1
Building - European (impact safety) P5A 4 mm Polycarbonate All Solid EN 356 - Ball
Building - European (impact safety) P8B 15 mm Polycarbonate Sheet Standard Clear Transparent UVP EN 356 - Axe
Building - European (impact safety) P6B 8 mm Polycarbonate Sheet Standard Clear Transparent UVP EN 356 - Axe
Building - European (impact safety) P6B 12 mm Polycarbonate Sheet Standard Clear Transparent UVP EN 356 - Axe
Building - UK (Fire) 1Y 3 mm Polycarbonate Sheet Standard Clear Transparent UVP BS 476 part 7
Building - UK (Fire) 1Y 4 mm Polycarbonate Sheet Standard Clear Transparent UVP BS 476 part 7
Building - European (Suitability for use in Dome lights) ΔA 3-6 mm Polycarbonate Sheet Standard Clear Transparent UVP EN 1873
Building - European (Suitability for use in Dome lights) Cu0, Ku1 3 mm Polycarbonate Sheet Standard Clear Transparent UVP EN 1873
Building - European (Suitability for use in Dome lights) Cu0, Ku1 6 mm Polycarbonate Sheet Standard Clear Transparent UVP EN 1873
Electrical - Glow wire testing 960°C 2 mm Polycarbonate Opaque Black Glowwire IEC 60695-2-12
Electrical - Glow wire testing 850°C 2 mm Polycarbonate Sheet Standard Clear Transparent UVP Glowwire IEC 60695-2-12
Electrical - Glow wire testing 850°C 3 mm Polycarbonate Sheet Standard Clear Transparent UVP Glowwire IEC 60695-2-12
Electrical - Glow wire testing 960°C 5mm Polycarbonate Sheet Standard Clear Transparent UVP Glowwire IEC 60695-2-12
Soundwalls - European Rw 35(-2;-2) dB 15 mm Polycarbonate Sheet Standard Clear Transparent UVP ISO 717-1
Soundwalls - European Class 6 Impact 12 mm Polycarbonate Sheet Standard Clear Transparent UVP EN 1794-2
Soundwalls - European Class 2 Fire 8 mm Polycarbonate Sheet Standard Clear Transparent UVP EN 1794-2
Soundwalls - European Rw = 36 dB 17 mm Polycarbonate Sheet Standard Clear Transparent UVP ISO 717-1
Soundwalls - European 36 dB Class B3 18 mm Polycarbonate Sheet Standard Clear Transparent UVP EN 1793-2
Soundwalls - European 37 dB Class B3 20 mm Polycarbonate Sheet Standard Clear Transparent UVP EN 1793-2
Soundwalls - European 33 dB Class B3 15 mm Polycarbonate Sheet Standard Clear Transparent UVP EN 1793-2
UL94 - Indicative Only V0 10 mm Polycarbonate Sheet Standard Clear Transparent UL94
Welding Screens Pass 3 & 4 mm Polycarbonate Coloured FI-01 ISO 25980
Aircraft - (Fire) b2 1,5-12 mm Polycarbonate Sheet Standard Clear Transparent UVP FAR 25.853(a)
Safety Glazing in Automotive - Homologation Homologation 1.8-12 mm Polycarbonate Hard Coated - All Colours ECE R43
Fire Properties in Bus Interior - Annex 6-7-8 Homologation 2-20 mm Polycarbonate Hard Coated - Clear & Grey ECE R118
Fire Properties in Bus Interior - Annex 6-7-8 Homologation > 1.5 mm PC/ABS 5103.03 R118-7-8 ECE R118
Oxygen index 38,2 3 mm Polycarbonate Opaque 7000 (FR) Flame Retardent ISO 4589-2
Oxygen index 36,2 3 mm Polycarbonate Sheet (FR) Flame Retardent Clear ISO 4589-2
Oxygen index 27,3 3 mm Polycarbonate Sheet Clear ISO 4589-2
Oxygen index 27,2 3 mm Polycarbonate Sheet Opaque Black ISO 4589-2
Food Contact Approved for Professional Applications All Polycarbonate Sheet (FA) Food Approved EU 10-2011
Food Contact Approved for Professional Applications All Polycarbonate Sheet Clear EU 10-2011
Er zijn geen certificaten beschikbaar
