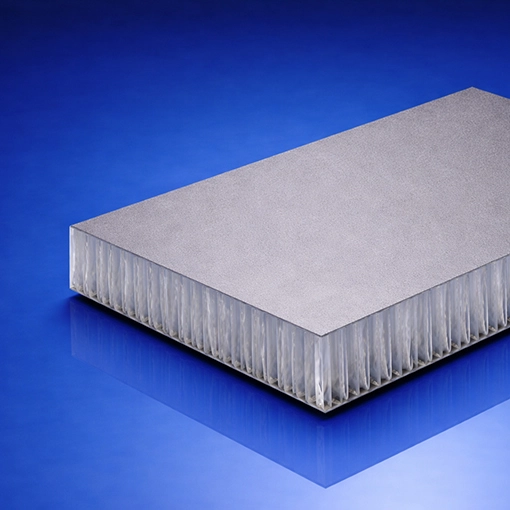

The Glass-PP Composite Floor Panel (30mm) is designed for environments where structural failure is not an option. The 30mm thickness provides a significant increase in the moment of inertia, allowing the panel to span larger distances with minimal deflection. This makes it the premier engineering choice for heavy-duty scaffolding boards, temporary roadways, and commercial truck beds where the material must support heavy machinery or high-density pedestrian traffic without compromising safety.
In the commercial transport and horse van sectors, floors are subjected to concentrated loads and heavy impact. The 30mm Glass-PP panel utilizes a reinforced polypropylene matrix that distributes these forces across the honeycomb structure, preventing the localized "punch-through" common in thinner composites or rotting plywood. The continuous glass-fiber skins act as a high-tensile shield, maintaining the panel's integrity even after years of aggressive mechanical use.
One of the primary advantages of our manufacturing process is the ability to produce seamless panels up to 13.5 meters in length. For the truck and trailer industry, this allows for the installation of a single-piece floor, eliminating the seams and joints where moisture usually enters and causes structural rot. A joint-free floor is easier to clean, more hygienic, and significantly faster to install during the vehicle assembly process.
Glass-PP is engineered for a service life that outlasts traditional materials. Because it is a thermoplastic mono-material, it does not suffer from the internal corrosion or delamination found in metal or GRP-bonded panels. It remains chemically inert when exposed to oils, road salts, and aggressive cleaning agents, ensuring that the floor maintains its structural ratings and aesthetic finish in the most punishing outdoor conditions.
Engineered for high-load industrial applications. Use the 30mm Glass-PP Floor Panel for commercial truck and trailer flooring, heavy-duty horse van interiors, and Load Class 4 scaffolding systems. It is also highly effective for use in mobile stage decks and temporary event infrastructure where high-density point loads and fire safety (Bfl-s1) are mandatory requirements.
Information for all Composite Classifications, Certificates and Standards is available for download in the following tab. Also see our informative page on classifications and standards here.
| Chemical Resistance | ISO/TR 10358 (Rated: Excellent) |
| Structural Welding | DVS 2207 / DVS 2205 (Compliant) |
| Environmental Safety | REACH & RoHS Compliant |
| Weight (30mm Panel) | ~6.40 kg/m² |
| Structural Rating | Certified for Load Class 4 (Scaffolding) |
| Service Temperature | -40°C to +100°C (Peaks up to 120°C) |
| Fire Rating (Euroclass) | Bfl-s1, d0 (Heavy-Duty Flooring) |
| Recyclability | 100% Recyclable (Glass-Reinforced PP Regrind) |
Note: Custom composite configurations, including PETG skins for higher heat tolerance or specialized surface finishes, are available for custom project specifications.
